TBR

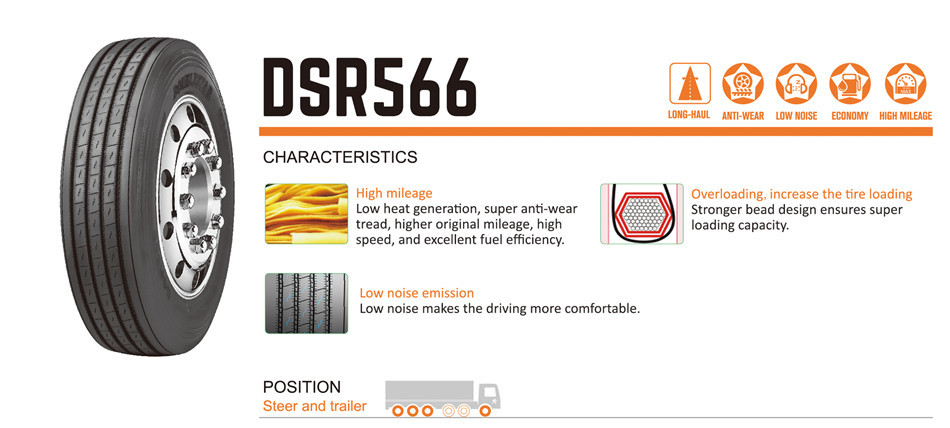

DSR566

Product description

Pattern Size PR Tread Depth Standard Rim Pressure(kPa) Max. Load(kg)  Load Index Speed Grade Inflated Diameter
mm inch
mm 1/32in Single Dual Single Dual Single Dual Overall Diameter Section Width Overall Diameter Section Width
DSR566 11R22.5 16 14.5 18 8.25 850 850 3150 2900 148 145 M 1054 279 41 11
295/75R22.5 14 14.5 18 9.00 760 760 2800 2575 144 141 M 1014 298 40 12
295/80R22.5 18 14.5 18 9.00 850 850 3750 3550 154 152 M 1044 298 41 12
385/65R22.5 20 15.0 19 11.75 900 \ 4500 \ 160(158) \ K(L) 1072 389 42 15
11R24.5 14 14.5 18 8.25 720 720 3000 2725 146 143 L 1104 279 43 11
11R24.5 16 14.5 18 8.25 830 830 3250 3000 149 146 M 1104 279 43 11
285/75R24.5 16 14.5 18 8.25 830 830 3075 2800 147 144 M 1050 283 41 11
