TBR

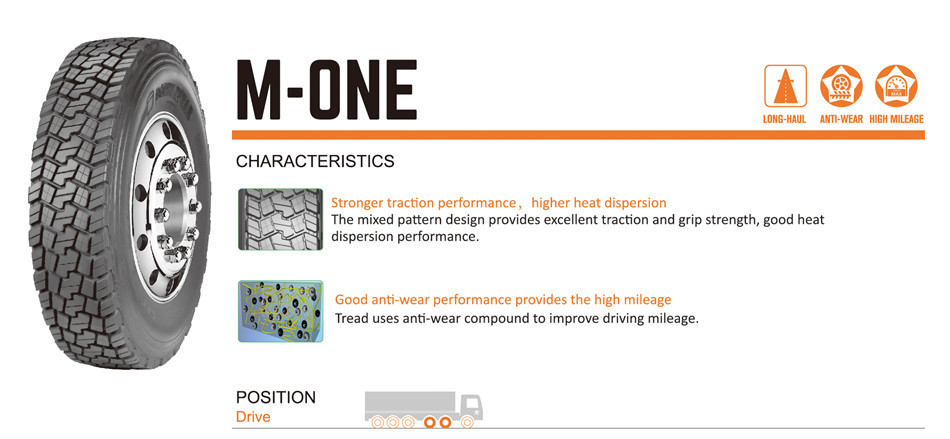

M-ONE
Product description
| Pattern | Size | PR | Tread Depth | Standard Rim | Pressure(kPa) | Max. Load(kg) | Load Index | Speed Grade | Inflated Diameter | |||||||
| mm | inch | |||||||||||||||
| mm | 1/32in | Single | Dual | Single | Dual | Single | Dual | Overall Diameter | Section Width | Overall Diameter | Section Width | |||||
| M-ONE | 12R22.5 | 16 | 21.3 | 27 | 9.00 | 830 | 830 | 3350 | 3075 | 150 | 147 | L | 1085 | 300 | 43 | 12 |
| 13R22.5 | 18 | 18.5 | 23 | 9.75 | 850 | 850 | 3750 | 3350 | 154 | 150 | L | 1124 | 320 | 44 | 13 | |
| 315/80R22.5 | 18 | 21.3 | 27 | 9.00 | 830 | 830 | 3750 | 3450 | 154 | 151 | K | 1076 | 312 | 42 | 12 | |
