TBR

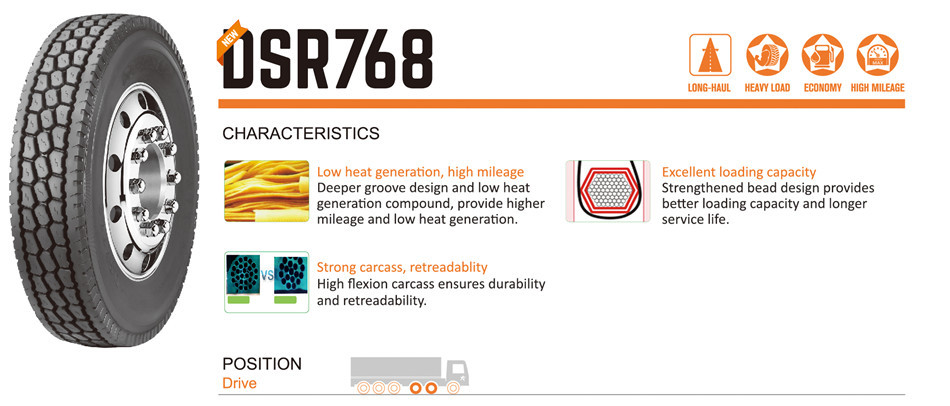

DSR768

Serial number:
Product description

Pattern Size PR Tread Depth Standard Rim Pressure(kPa) Max. Load(kg)  Load Index Speed Grade Inflated Diameter
mm inch
mm 1/32in Single Dual Single Dual Single Dual Overall Diameter Section Width Overall Diameter Section Width
DSR768 11R22.5 16 22.5 28 8.25 850 850 3150 2900 148 145 M 1054 279 41 11
285/75R24.5 14 22.5 28 8.25 760 760 2800 2575 144 141 M 1050 283 41 11
285/75R24.5 16 22.5 28 8.25 830 830 3075 2800 147 144 M 1050 283 41 11
295/75R22.5 14 22.5 28 9.00 760 760 2800 2575 144 141 M 1014 298 40 12
295/75R22.5 16 22.5 28 9.00 830 830 3000 2725 146 143 M 1014 298 40 12
