TBR

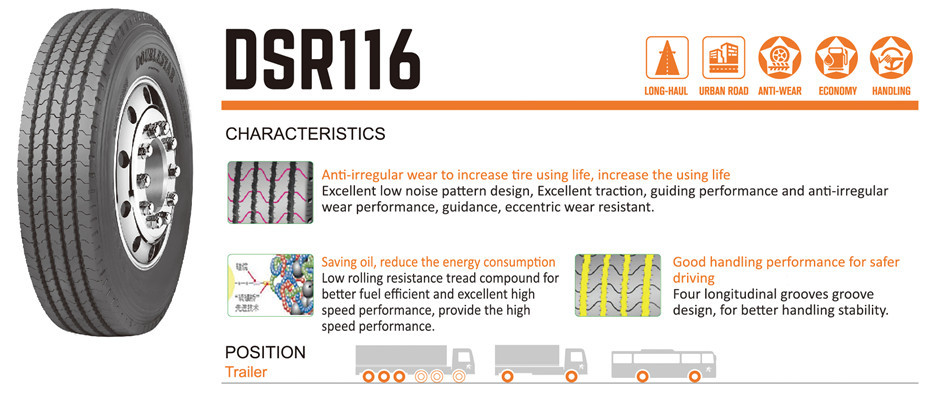

DSR116
Product description
| Pattern | Size | PR | Tread Depth | Standard Rim | Pressure(kPa) | Max. Load(kg) | Load Index | Speed Grade | Inflated Diameter | |||||||
| mm | inch | |||||||||||||||
| mm | 1/32in | Single | Dual | Single | Dual | Single | Dual | Overall Diameter | Section Width | Overall Diameter | Section Width | |||||
| DSR116 | 215/75R17.5 | 16 | 12.3 | 15 | 6.00 | 700 | 700 | 1700 | 1600 | 126 | 124 | L | 767 | 211 | 30 | 8 |
| 8.5R17.5 | 12 | 13.3 | 17 | 6.00 | 625 | 625 | 1450 | 1400 | 121 | 120 | L | 802 | 215 | 32 | 8 | |
| 9.5R17.5 | 16 | 13.3 | 17 | 6.75 | 750 | 750 | 1850 | 1750 | 129 | 127 | L | 842 | 240 | 33 | 9 | |
| 215/75R17.5 | 18 | 12.3 | 15 | 6.00 | 850 | 850 | 2180 | 2060 | 135 | 133 | J | 767 | 211 | 30 | 8 | |
| 225/75R17.5 | 16 | 13.0 | 16 | 6.75 | 725 | 725 | 1850 | 1750 | 129 | 127 | L | 783 | 226 | 31 | 9 | |
| 235/75R17.5 | 16 | 13.0 | 16 | 6.75 | 775 | 775 | 2000 | 1900 | 132 | 130 | M | 797 | 233 | 31 | 9 | |
| 235/75R17.5 | 18 | 13.0 | 16 | 6.75 | 875 | 875 | 2725 | 2575 | 143 | 141 | J | 797 | 233 | 31 | 9 | |
| 245/70R19.5 | 16 | 13.0 | 16 | 7.50 | 825 | 825 | 2240 | 2120 | 136 | 134 | L | 839 | 248 | 33 | 10 | |
| 265/70R19.5 | 16 | 13.0 | 16 | 7.50 | 775 | 775 | 2500 | 2360 | 140 | 138 | M | 867 | 262 | 34 | 10 | |
| 285/70R19.5 | 18 | 15.0 | 19 | 8.25 | 900 | 900 | 3350 | 3150 | 150 | 148 | J | 895 | 283 | 35 | 11 | |
| 11R22.5 | 14 | 10.2 | 13 | 8.25 | 720 | 720 | 2800 | 2650 | 144 | 142 | M | 1054 | 279 | 41 | 11 | |
| 11R22.5 | 16 | 10.2 | 13 | 8.25 | 850 | 850 | 3150 | 2900 | 148 | 145 | L | 1054 | 279 | 41 | 11 | |
| 275/70R22.5 | 16 | 15.3 | 19 | 8.25 | 900 | 900 | 3150 | 2900 | 148 | 145 | L | 958 | 276 | 38 | 11 | |
| 295/60R22.5 | 16 | 15.3 | 19 | 9.00 | 900 | 900 | 3250 | 3000 | 149 | 146 | L | 926 | 292 | 36 | 11 | |
| 295/75R22.5 | 14 | 10.2 | 13 | 9.00 | 760 | 760 | 2800 | 2575 | 144 | 141 | L | 1014 | 298 | 40 | 12 | |
| 315/60R22.5 | 16 | 15.3 | 19 | 9.75 | 900 | 900 | 3550 | 3150 | 152 | 148 | L | 950 | 313 | 37 | 12 | |
| 315/80R22.5 | 18 | 16.3 | 21 | 9.00 | 830 | 830 | 3750 | 3450 | 154 | 151 | M | 1076 | 312 | 42 | 12 | |
| 315/80R22.5 | 20 | 16.3 | 21 | 9.00 | 850 | 850 | 4000 | 3350 | 156 | 150 | L | 1076 | 312 | 42 | 12 | |
| 11R24.5 | 14 | 10.2 | 13 | 8.25 | 720 | 720 | 3000 | 2725 | 146 | 143 | L | 1104 | 279 | 43 | 11 | |
| 11R24.5 | 16 | 10.2 | 13 | 8.25 | 830 | 830 | 3250 | 3000 | 149 | 146 | M | 1104 | 279 | 43 | 11 | |
| 285/75R24.5 | 14 | 10.2 | 13 | 8.25 | 760 | 760 | 2800 | 2575 | 144 | 141 | L | 1050 | 283 | 41 | 11 | |
| 285/75R24.5 | 16 | 10.2 | 13 | 8.25 | 830 | 830 | 3075 | 2800 | 147 | 144 | L | 1050 | 283 | 41 | 11 | |
* DSR116 pattern is Retreadable.
